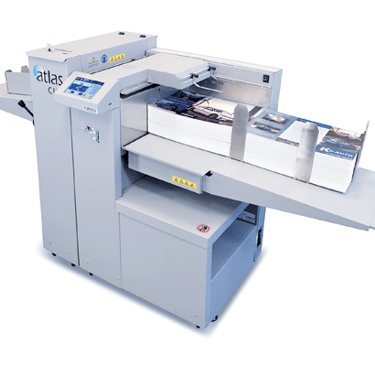

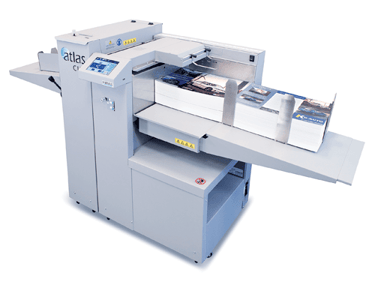

Atlas C150 High-Speed Automatic Creaser

The ATLAS C150 High-Speed Automatic Creaser/Perforator offers outstanding features in a compact footprint. An intuitive touchscreen control panel and top vacuum pile feed system make it ready to take on high volume jobs with ease. The unique heavy-duty creasing matrix eliminates cracking in digital prints, ideal for on-demand jobs requiring a professional finished look. It can be equipped with an optional second creasing/perforating blade kit, which allows for single-pass up/down creasing and cross/partial perforation for hinges, book covers, multi-panel brochures, and tear-off applications.

The top-loading vacuum infeed adjusts automatically to handle media stacks up to 7.8” high. Its optical sensors control sheet separation by constantly monitoring the float zone and making adjustments on-the-fly. Designed to handle today’s larger media sizes, the feed table extends to accommodate media up to 15” W x 51” L, in weights from 80-400 gsm, while the adjustable outfeed stacker holds processed sheet stacks up to 4.7” high.

Using the color touchscreen control panel makes setup quick and easy. Simply enter the sheet length, weight, and fold type, and the Atlas C150 automatically calculates the crease locations and sets them accordingly. Users can easily choose from pre-programmed common creases, or create and save an unlimited number of custom jobs.

The Atlas C150 features quick-change creasing blades which are easy to swap in and out in just seconds, without using any tools. It also includes an in-line rotary perforation kit, which allows for creasing and perforating in a single pass. An optional cross perforating blade kit can be used to combine creasing and cross perforating in a single pass for a variety of jobs including brochures with tear-offs.

Additional options include a second creasing blade kit, as well as narrow and ultra narrow creasing blade kits.

With high-speed output, user friendly features and the ability to handle large media sizes, the ATLAS C150 is a welcome addition to today’s digital print environments.

Product Brochure -

Key Features

• Fully automatic setup

• Top vacuum infeed table

• Height-adjustable outfeed stacker

• 7" color touchscreen

• Up to 8,500 sheets per hour

• Infeed stack up to 7.8" high

• Sheets up to 51" x 15"

• Quick-release blade system

• Second creasing blade kit (optional)

• Cross/part perforation kit (optional)
